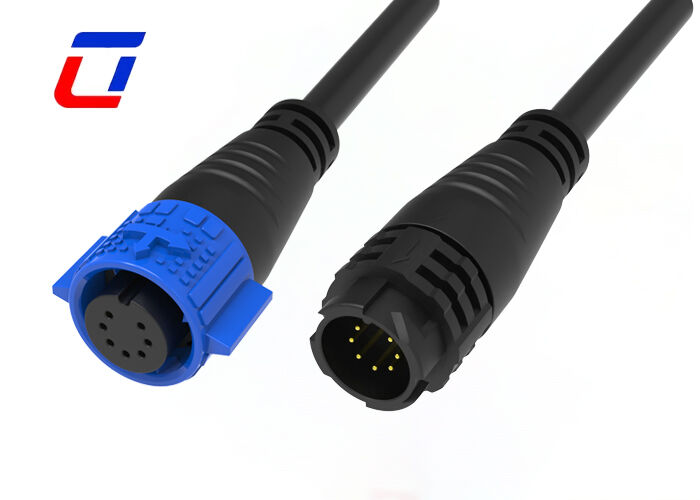

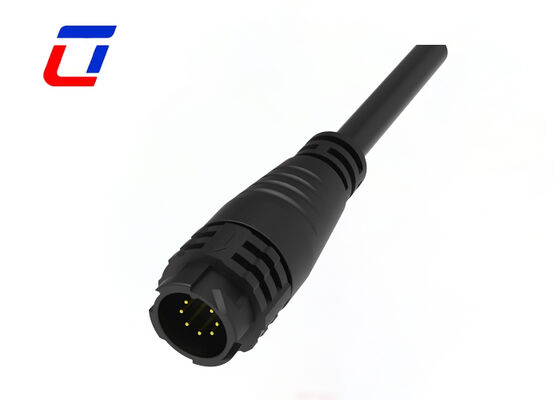

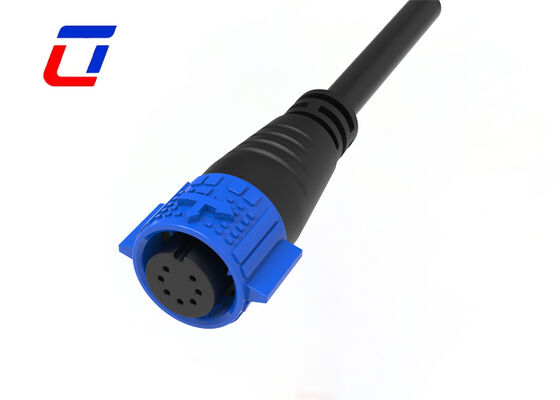

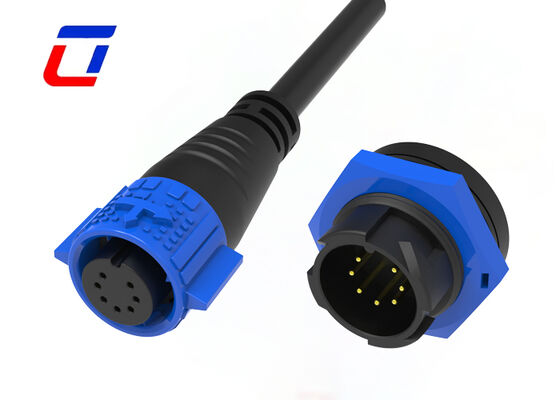

Name: 300V M19 8 Pin Waterproof Connector Push Locking Data Molded Cable Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: Μ19
Availability: InStock

Αρχική Σελίδα Προϊόντα αδιάβροχος συνδετήρας καλωδίων

300V M19 8 Pin Waterproof Connector Push Locking Data Molded Cable Connector

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs/TUV/UL
Αριθμό μοντέλου:	Μ19

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	1. Πλαστική σακούλα, 2. Χαρτοκιβώτιο, 3. Σύμφωνα με τις απαιτήσεις του πελάτη
Χρόνος παράδοσης:	3~6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Δυνατότητα προσφοράς:	100000 ζεύγη μηνιαίως

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Καρφίτσα:	Υποδοχή δεδομένων 8 PIN	Διορισμένο ρεύμα/φόρτιση:	10A/300V
Υλικό:	Νάιλον	Γένος:	Αρσενικό σε θηλυκό
Θερμοκρασία λειτουργίας:	-40℃-+105℃	Αξιολόγηση αντοχής στη φλόγα:	UL 94-V0
Επισημαίνω:	8 pin waterproof connector , M19 push lock cable connector , 300V molded waterproof connector

8 Pin Cable Connector M19 Male Female Quick Lock Waterproof Connectors

Quick Description

Rated at 300V, this M19 8-pin molded cable waterproof connector is engineered for industrial data transmission. Designed with integrated molded cable and thread-free Push Lock self-locking mechanism, it combines 8 isolated pins for multi-channel data and auxiliary low-power connection. Rated IP67, it stands up to damp workshops and open-air installation, while molded cable structure greatly improves bending and pull resistance for long-distance wiring.

300V Voltage Rating for Enhanced Electrical Safety
Thickened insulating body supports 300V rated voltage, resisting transient voltage surge and fluctuation on site. It effectively avoids insulation breakdown and electric leakage to satisfy industrial electrical safety standards.
Integral Molded Cable for Superior Strain Relief
One-piece injection molding removes gaps between plug and wire. The reinforced cable root tolerates frequent pulling and bending without crack or water ingress, solving common loose wire issues of split-type connectors.
8 Isolated Pins for Stable Crosstalk-Free Data Transfer
Eight separately partitioned pins transmit sensor data and control signals independently to reduce signal interference and data loss. One connector consolidates multiple data lines to simplify device external port layout.
Tool-Free Push Lock Self-Locking Connection
Automatic locking upon insertion and easy release by pressing, no screw thread or auxiliary tools needed. Constant buckle clamping force prevents loose connection caused by mechanical vibration and cable tension.
IP67 Sealing for All-Round Environmental Protection
High-elastic silicone gasket ensures full tight seal after locking, blocking rain, dust, dew and slight oil dirt to keep inner pins intact under harsh working surroundings.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	8Pin
Current Rating	10A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 1.5mm²

Design Sketch

300V M19 8 Pin Waterproof Connector Push Locking Data Molded Cable Connector 1
