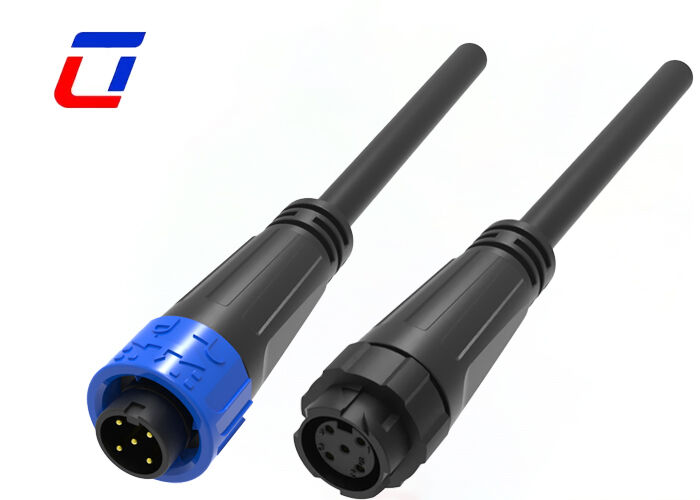

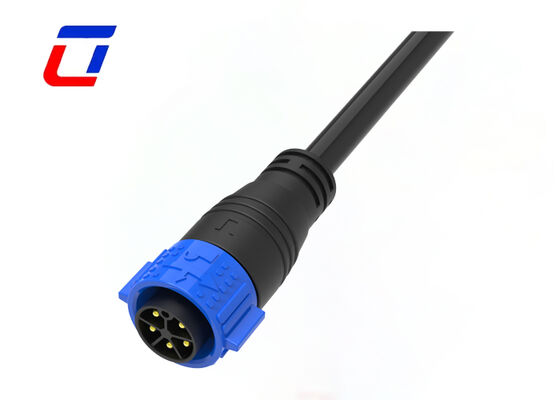

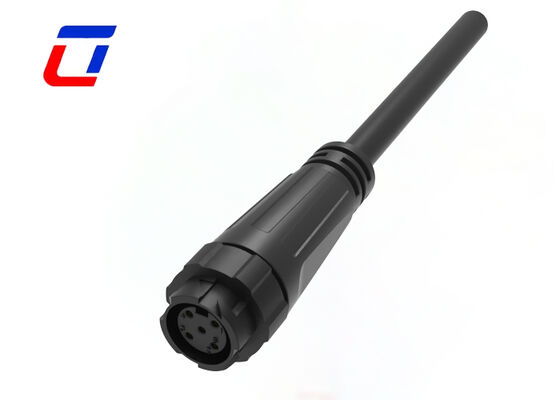

Name: M16 5 Pin Push Pull Cable Connectors Industrial Molded Waterproof Connector For Power
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: Μ16
Availability: InStock

Αρχική Σελίδα Προϊόντα αδιάβροχος συνδετήρας καλωδίων

M16 5 Pin Push Pull Cable Connectors Industrial Molded Waterproof Connector For Power

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs/TUV/UL
Αριθμό μοντέλου:	Μ16

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	Χαρτοκιβώτιο υψηλής ποιότητας εξαγωγών
Χρόνος παράδοσης:	3 έως 6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T,D/A,D/P,MoneyGram,L/C
Δυνατότητα προσφοράς:	100000 ζευγάρια κάθε μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Αριθμός ακίδων:	5 Καρφίτσα	Ρεύμα:	8Α μέγ. για την εξουσία
Ονομαστική τάση:	125V	Αδιάβροχη Βαθμολογία:	IP67
Θερμοκρασία λειτουργίας:	-40℃~+105℃	Υλικό Επικοινωνίας:	Ορειχάλκινος επίχρυσος
Επισημαίνω:	M16 waterproof cable connector , 5 pin push pull connector , industrial molded power connector

M16 DC Waterproof Connector ODM Wire To Wire 5 Pin Power Quick Lock Connector

M16 5 Pin 300V Push Lock Waterproof Cable Connector IP67

Push-Pull Quick Connect Mechanism
Adopts precision push-pull self-locking structure, enabling one-hand fast plugging and unplugging without tools. The connection is firm and not easy to loose under vibration, greatly improving on-site installation and maintenance efficiency.

5-Pin Power-Optimized Terminal Layout
Designed with 5-pin configuration dedicated for power transmission, with reasonable pin spacing and high-current carrying capacity, ensuring low contact resistance and stable power delivery for industrial equipment.

Fully Molded Waterproof Integrated Structure
One-piece molded construction provides excellent waterproof, tensile and bending resistance. The cable and connector are integrated as a whole, effectively preventing water ingress and wire breakage in harsh environments.

IP67 Industrial-Grade Protection Performance
With multi-layer sealing design, it reaches IP67 waterproof and dustproof level, suitable for long-term use in industrial sites, humid, dusty and outdoor environments with strong environmental interference.

Key Features

Push-lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Professional Manufacturer

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q2: How many materials you can provide?

A2: There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors, and PVC/Rubber/Silicone materials for cables. We can also select materials according to your specific requirements.

Q3: What payment methods do you accept?

A3: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
