Name: M25 Male Female Bulkhead Connector Quick Release 5 Pin Panel Mount Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Αρχική Σελίδα Προϊόντα Αδιάβροχη υποδοχή βουλωμάτων

M25 Male Female Bulkhead Connector Quick Release 5 Pin Panel Mount Connector

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs/TUV/UL
Αριθμό μοντέλου:	M25

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	Χαρτοκιβώτιο υψηλής ποιότητας εξαγωγών
Χρόνος παράδοσης:	3 έως 6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T,D/A,D/P,MoneyGram,L/C
Δυνατότητα προσφοράς:	100000 ζευγάρια κάθε μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Αριθμός καρφιτσών:	5 Καρφίτσα	Ονομαστική τάση:	300V
Γένος:	Άνδρας/Γυναίκα	Χρώμα:	Πράσινο Μπλε Κόκκινο
Επίπεδο Προστασίας:	IP67	Αξιολόγηση ανθεκτική στη φλόγα:	UL94-V0
Επισημαίνω:	5 pin waterproof bulkhead connector , quick release panel mount connector , M25 male female plug socket

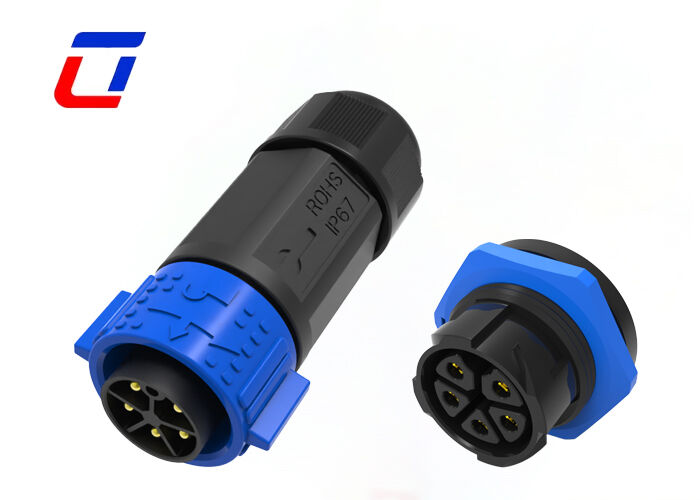

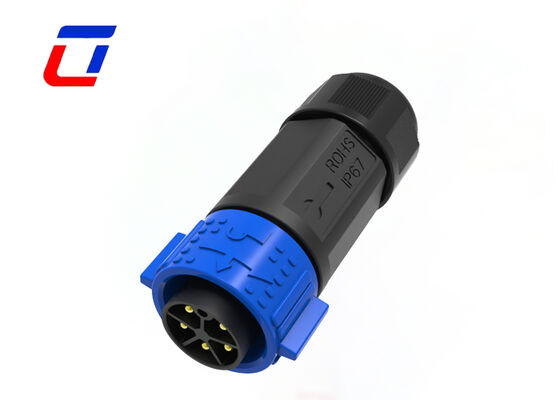

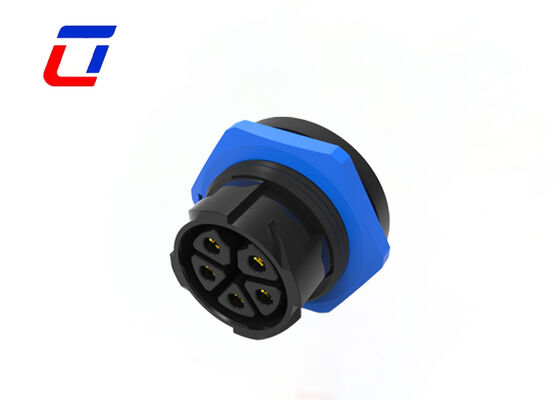

M25 5-Pin Waterproof Bulkhead Connector

This M25 5-pin electrical wire-to-board connector is a 300V round waterproof connector designed for industrial power applications. Featuring a push-lock quick-release system and male-female bulkhead design, it provides reliable power connectivity for panel-mounted equipment in demanding environments.

Product Overview

The M25 5-pin industrial waterproof power connector features a push-lock male-to-female bulkhead design rated for 20A current and 300V voltage transmission. Engineered specifically for power supply scenarios, this connector offers excellent sealing performance to effectively block dust and moisture while ensuring stable power delivery with minimal loss for medium-power equipment.

Key Features

Push-lock quick release system for tool-free operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin, and 2+20Pin
Field assembly versions: wire-to-wire and wire-to-board options
High-current rated waterproof connector suitable for continuous 20A operation
Cable assembly service supported with customization options
OEM/ODM services welcome

Electrical Specifications

Parameter	Specification
Number of Poles	5Pin waterproof connector
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ maximum
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1 meter / 30 minutes)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC maximum
Current Rating	30A maximum
Minimum Wire Size OD	6.5mm - 10mm
Maximum Wire Size OD	10.5mm - 18mm
Maximum Cable Cross Section Area	0.5mm² - 6.0mm²

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding equipment
Industrial inkjet equipment
Solar power systems
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimensions

Technical Details

Frequently Asked Questions

How can I get samples?

We are pleased to provide samples, with freight costs covered by the customer. Please provide your courier account number and detailed shipping address for immediate sample dispatch.

What is your Minimum Order Quantity (MOQ)?

MOQ varies by product type: typically 500 units for standard models and 1000 units for customized items. Lower quantities can be negotiated for trial orders or long-term partnerships.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders with increasingly competitive pricing at higher volumes. Please share your expected quantity for a customized quotation.

What payment methods do you accept?

We accept T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard terms are 30% down payment with 70% balance due before shipment.
