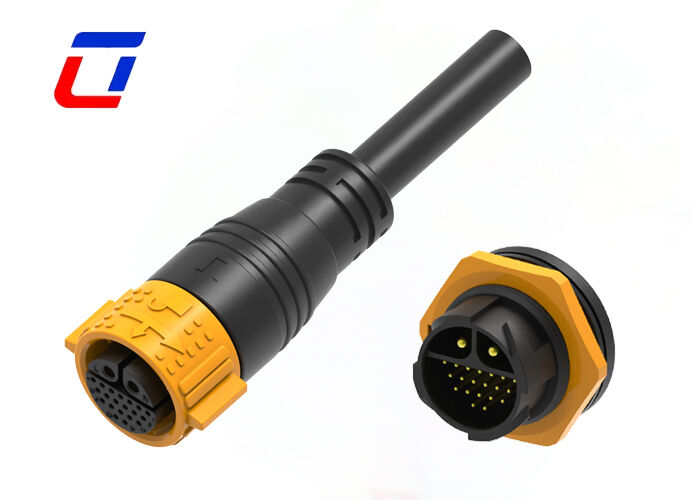

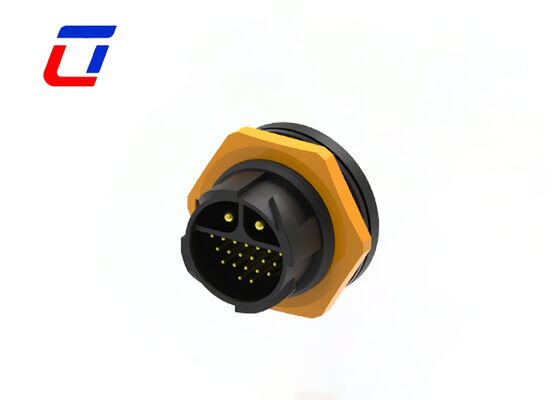

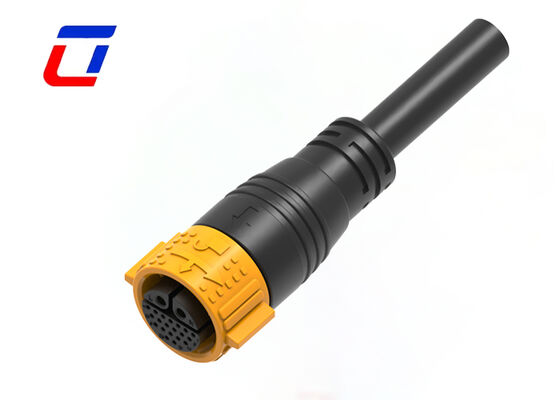

M25 2+20 Pole Cable Connector Quick Release IP67 Solar Wire To Board Connectors
M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector
Product Overview
Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board
Key Features
Dual-Circuit 2+20 Pin Layout
The connector adopts a dual-independent circuit design with a 2+20 pin split layout, clearly separating power and data signal transmission channels. The 2 dedicated pins are optimized for high-power transmission with excellent current-carrying capacity, while the 20 pins support multi-channel data signal transmission with strong anti-interference performance.
M25 Standard Interface with Tool-Free Quick Lock
Compliant with the M25 standard interface, it has strong compatibility and matches various M25 standard components. Its tool-free push-lock mechanism allows one-second installation, and the automatic vibration-proof connection after locking prevents accidental disconnection and ensures stable transmission.
Combined Power & Signal Design
This product integrates power and signal transmission into one connector, saving installation space and simplifying equipment wiring. It eliminates the need for separate power and signal connectors, reducing component quantity and installation costs.
Custom Cable Assembly Solutions
Ulinkcon provides personalized custom cable assembly solutions to meet diverse customer needs. The team customizes details such as cable length, material and pin definition according to customers' actual application scenarios and equipment parameters.
Reliable Performance in Harsh Environments
Optimized for outdoor and industrial harsh environments, the connector has excellent waterproof and dustproof performance to block harmful substances. Its high-grade shell material is anti-aging and corrosion-resistant, ensuring long-term stable operation.
Application Industries
- Communications Equipment
- Product Coding Machines & Inkjet Systems
- Solar Systems
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Heavy Machinery
- Industrial Inkjet Equipment
Technical Specifications
Electrical Parameters
| Number of Poles |
22pin wire to board connector |
| Current Rating |
20A +5A |
| Voltage Rating |
300VAC max |
| Durability Voltage |
2500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
40A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max Cable Cross Section Area |
0.5mm² ~ 6.0mm² |
Product Configuration
Product Dimension
Technical Details
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.
