Name: M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: Μ19
Availability: InStock

Αρχική Σελίδα Προϊόντα αδιάβροχος συνδετήρας καλωδίων

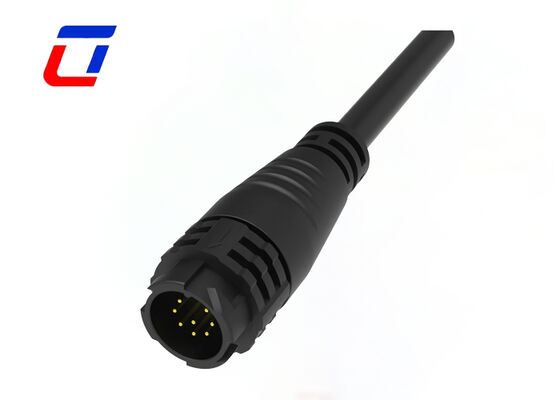

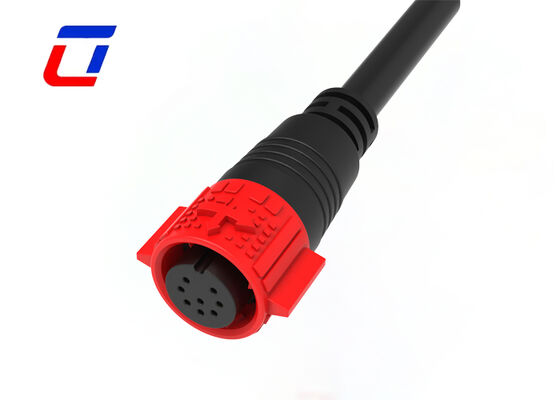

M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs
Αριθμό μοντέλου:	Μ19

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	1. Πλαστική σακούλα, 2. Χαρτοκιβώτιο, 3. Σύμφωνα με τις απαιτήσεις του πελάτη
Χρόνος παράδοσης:	3~6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Δυνατότητα προσφοράς:	100000 ζεύγη μηνιαίως

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Καρφίτσα:	8 Καρφίτσα	Τύπος σύνδεσης:	Γρήγορη σύνδεση
Ονομαστική τάση:	300V	Θερμοκρασία λειτουργίας:	-40℃-+105℃
Αξιολόγηση αντοχής στη φλόγα:	UL 94-V0	Χρώμα:	Μπλε, άσπρος, πράσινος
Επισημαίνω:	IP67 waterproof cable connector , 8 pin outdoor cable connector , M19 waterproof male female connector

M19 IP67 Waterproof Outdoor Connector 8 Pin Male Female

Professional Outdoor Data Transmission Solution

This M19 8-pin circular connector is specifically engineered for outdoor data transfer applications, featuring 300V voltage compatibility, IP67 protection rating, and a quick-release mechanism. The expanded 8-pin design supports multi-channel synchronous data transmission, while the male-female cable connection includes a one-click quick-release system for easy installation and maintenance.

Constructed with high-strength plastic housing for enhanced durability against outdoor environmental corrosion, this connector delivers reliable performance in demanding conditions.

Key Features

Push-lock quick release system for tool-free operation
Multiple pin configurations available: 2-18 pins for various applications
Field assembly versions: wire-to-wire and wire-to-board options
5A current rating for continuous operation
Gold-plated copper pins for optimal contact efficiency
IP67 dustproof and waterproof protection
Anti-electromagnetic interference structure
Temperature range: -40°C to +105°C
Cable assembly service and OEM/ODM support available

Application Industries

Growth Lights and Agricultural Systems
Communications Equipment
Product Coding Machines and Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory and Forensic Equipment
Heavy Machinery and Industrial Controls
Smart Municipal Equipment
Outdoor Testing Instruments

Technical Specifications

Electrical Parameters

Number of Poles	8 Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 seconds

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min when mated)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Min Wire Size OD	3.0mm - 6.0mm
Max Wire Size OD	8.0mm - 10.0mm
Max Cable Cross Section Area	0.5mm² - 1.5mm²

Product Design

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

How can I get samples?

We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.

How many materials can you provide?

We offer various materials for connectors and cables. Connectors typically use PVC or Nylon materials, while cables use PVC, Rubber, or Silicone materials. We can also customize materials according to your specific requirements.
