Name: 11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: Μ19
Availability: InStock

Αρχική Σελίδα Προϊόντα Αδιάβροχη υποδοχή βουλωμάτων

11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs/TUV/UL
Αριθμό μοντέλου:	Μ19

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	1. Πλαστική σακούλα, 2. Χαρτοκιβώτιο, 3. Σύμφωνα με τις απαιτήσεις του πελάτη
Χρόνος παράδοσης:	3~6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Δυνατότητα προσφοράς:	100000 ζεύγη μηνιαίως

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Καρφίτσα:	11 Καρφίτσα	Τρέχουσα βαθμολογία:	5Α
Υλικό:	Νάιλον	Επίπεδο Προστασίας:	IP67
Αξιολόγηση ανθεκτική στη φλόγα:	UL94-V0	Υλικό Επικοινωνίας:	Ορειχάλκινος επίχρυσος
Επισημαίνω:	11 pin M19 circular connector , IP67 waterproof panel mount connector , automotive waterproof plug socket

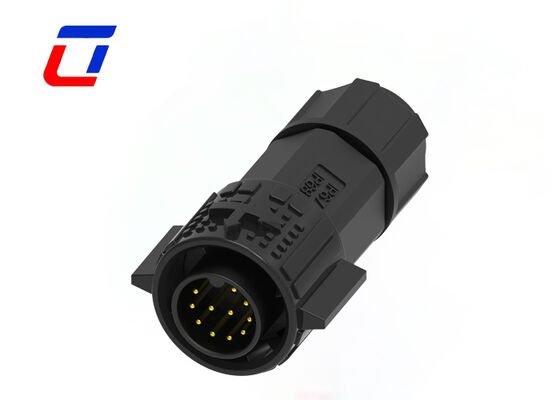

11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive

Product Overview

The M19 11-pin circular connector is engineered for wire-to-wire data transmission in demanding outdoor scenarios, featuring quick-lock convenience and high-protection stability. Designed for multi-channel data interconnection in industrial outdoor, communication monitoring, and environmental monitoring applications.

Key Features

Push lock quick release system for tool-free installation
Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire-to-wire and wire-to-board options
5A current rating for continuous operation
Cable assembly services and custom solutions available
OEM/ODM services welcome

Technical Specifications

Parameter	Specification
Number of Poles	11Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60s
Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1m / 30min) when mated
Housing Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Minimum Wire Size OD	3.0mm - 6.0mm
Maximum Wire Size OD	8.0mm - 10.0mm
Maximum Cable Cross Section Area	0.5mm² - 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

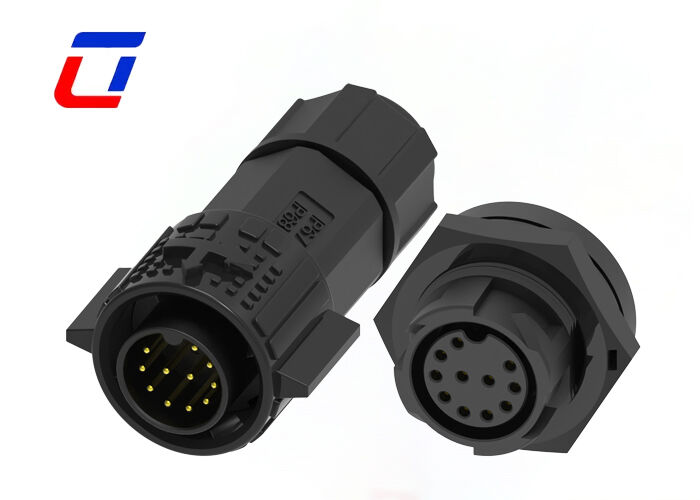

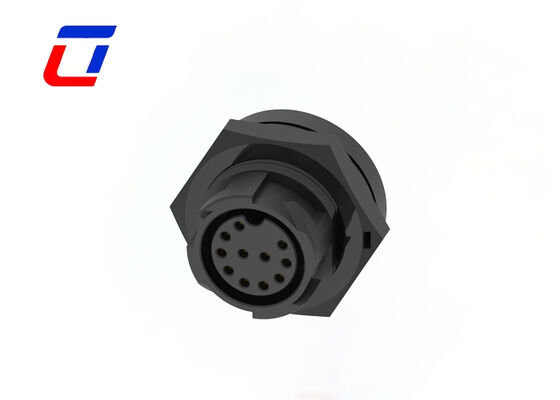

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to buy your products?

A: You need to do as followings:
• Confirm Current Rating and Number of Contacts
• Confirm Assembly style
• Confirm Cable Wire gauge
• Confirm Cable Length and Material

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q: Is there a discount for large-quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
