Name: M19 300V Waterproof Cable Connector 12 Pin Self Locking Outdoor Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: Μ19
Availability: InStock

Αρχική Σελίδα Προϊόντα Αδιάβροχη υποδοχή βουλωμάτων

M19 300V Waterproof Cable Connector 12 Pin Self Locking Outdoor Connector

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs/TUV/UL
Αριθμό μοντέλου:	Μ19

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	1. Πλαστική σακούλα, 2. Χαρτοκιβώτιο, 3. Σύμφωνα με τις απαιτήσεις του πελάτη
Χρόνος παράδοσης:	3~6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Δυνατότητα προσφοράς:	100000 ζεύγη μηνιαίως

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Καρφίτσα:	12 Καρφίτσα	Ονομαστική τάση:	300V
Υλικό:	Νάιλον	Χρώμα:	Λευκό Μπλε Κόκκινο Μαύρο Κίτρινο
Αξιολόγηση ανθεκτική στη φλόγα:	UL94-V0	Τομείς βιομηχανίας:	Έξυπνο Σπίτι
Επισημαίνω:	M19 300V waterproof cable connector , 12 pin self locking outdoor connector , waterproof plug socket with warranty

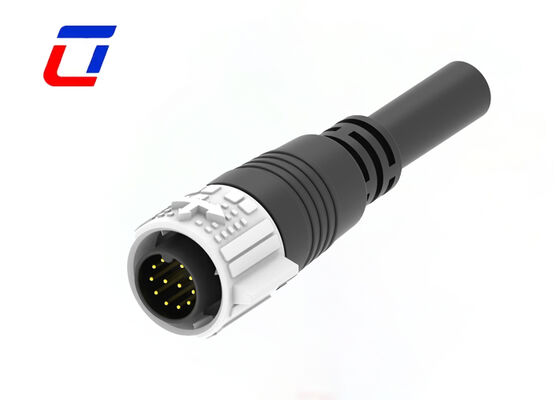

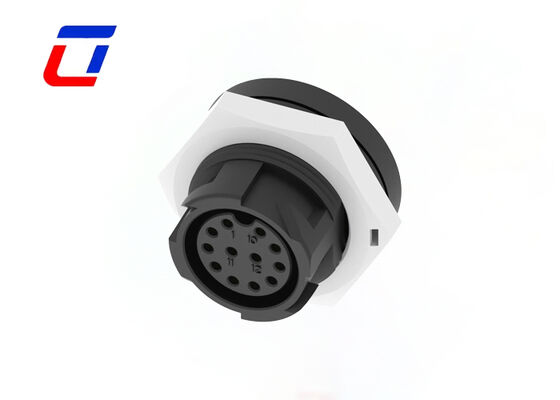

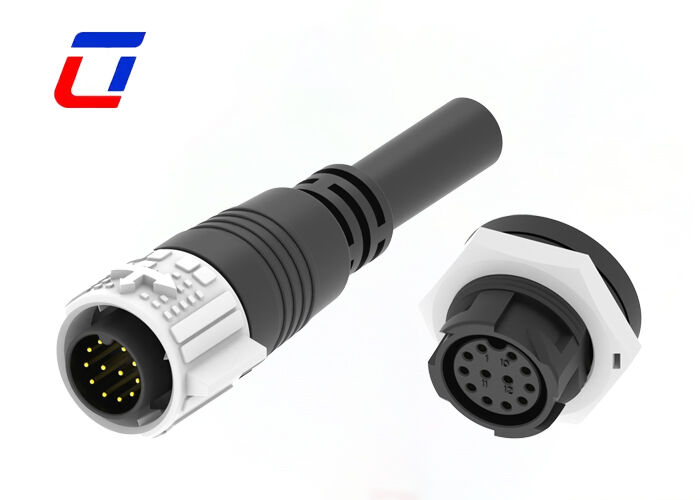

M19 300V Waterproof Cable Connector 12 Pin Self Locking Outdoor Connector

Product Overview

Engineered exclusively for high-reliability operation in wet, harsh environments, this circular connector series delivers uncompromised performance with its IP67 dust and water ingress protection rating. Equipped with a corrosion-resistant housing and a precise 12-pin configuration, it guarantees stable, uninterrupted transmission of both power and signal.

Key Advantages

Designed for tool-free, effortless mating, its rugged construction ensures long-lasting durability across industrial equipment, outdoor electronics, lighting systems, and marine devices. The intuitive push-lock mechanism enables automatic locking with simple one-second insertion, eliminating accidental disconnections in vibration-prone environments.

The integrated power-and-signal design addresses limitations of traditional separate connectors, offering compact, all-in-one connectivity ideal for space-constrained installations.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	12 Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
