Name: IP67 Waterproof Connector 3+5 Pin M19 Male Female Quick Release Plug Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Αρχική Σελίδα Προϊόντα Πολυ συνδετήρες καρφιτσών αδιάβροχοι

IP67 Waterproof Connector 3+5 Pin M19 Male Female Quick Release Plug Socket

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ulinkcon
Πιστοποίηση:	CE/Rohs/TUV/UL
Αριθμό μοντέλου:	M19

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	Διαπραγμάτευση
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	1. πλαστική σακούλα·2. Καρτόνι·3.Σύμφωνα με τις απαιτήσεις του πελάτη
Χρόνος παράδοσης:	3 έως 6 εργάσιμες ημέρες
Όροι πληρωμής:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Δυνατότητα προσφοράς:	100000 ζευγάρια Montly

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Τρέχουσα βαθμολογία:	15Α	Ονομαστική τάση:	300V
ΚΑΡΦΙΤΣΑ:	3+5Pin	Τύπος σύνδεσης:	Γρήγορη σύνδεση
Υλικό:	Νάιλον	Γένος:	Αρσενικό σε Γυναίκα
Επισημαίνω:	IP67 waterproof M19 connector , 3+5 pin quick release plug , M19 male female socket

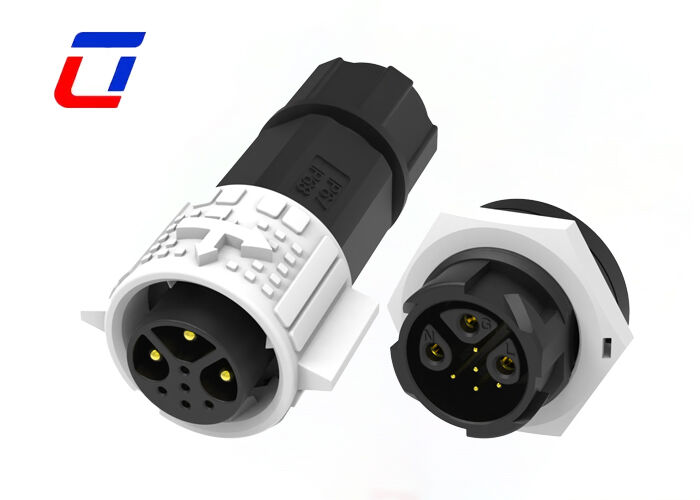

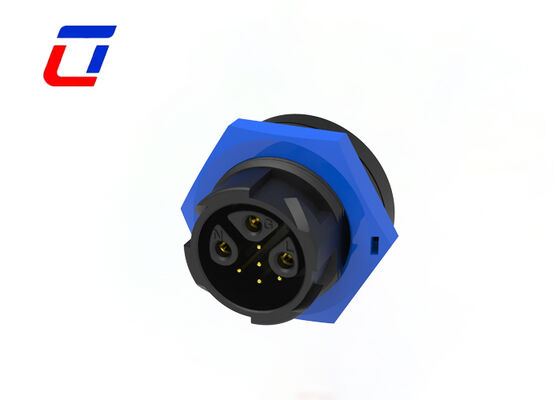

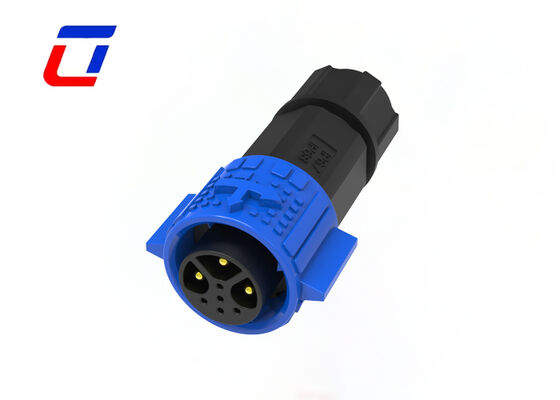

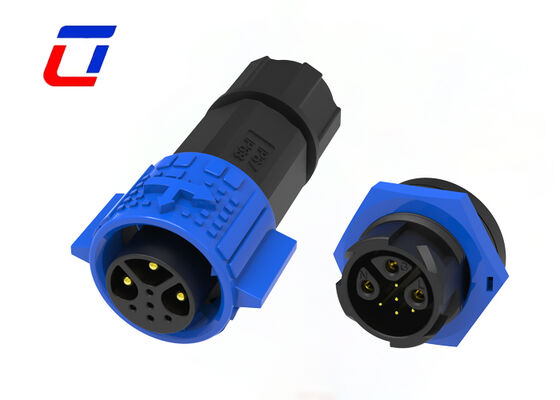

IP67 Waterproof Connector 3+5 Pin M19 Male Female Quick Release Plug Socket

Product Overview

M19 3+5 Pin IP67 Circular Plug and Socket Connectors designed for reliable performance in demanding industrial environments.

Environmental Protection

IP67 waterproof and dustproof rated, providing complete protection against dust ingress and temporary immersion up to 1 meter for 30 minutes. Ideal for harsh outdoor conditions including rain, sand, dust, and heavy fog environments.

Power & Signal Separation

3+5 Pin shunt layout design with 3 pins dedicated to stable power transmission and 5 pins for multi-channel signal synchronization, preventing interference between power and signal lines.

Quick Release Design

Push-lock quick release system enables tool-free installation and maintenance with anti-misplug protection to prevent accidental disconnection.

Electrical Specifications

Parameter	Specification
Number of Poles	3+5 Pin
Current Rating	15A max
Voltage Rating	300VAC max
Dielectric Strength	1500VAC @ 60 s

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Wire Size OD (Min)	3.0mm - 6.0mm
Wire Size OD (Max)	8.0mm - 10.0mm
Max Cable Cross Section	0.5mm² - 2.5mm²

Configuration Options

Push lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions: wire to wire and wire to board options
Current rated 20A for continuous operation
Cable assembly service supported with custom options
OEM/ODM services available
